7 inch Capacitive Touch Screen

$45.99

  • Product Code:7 inch display
  • Availability:In Stock
+ -

Myself introduction

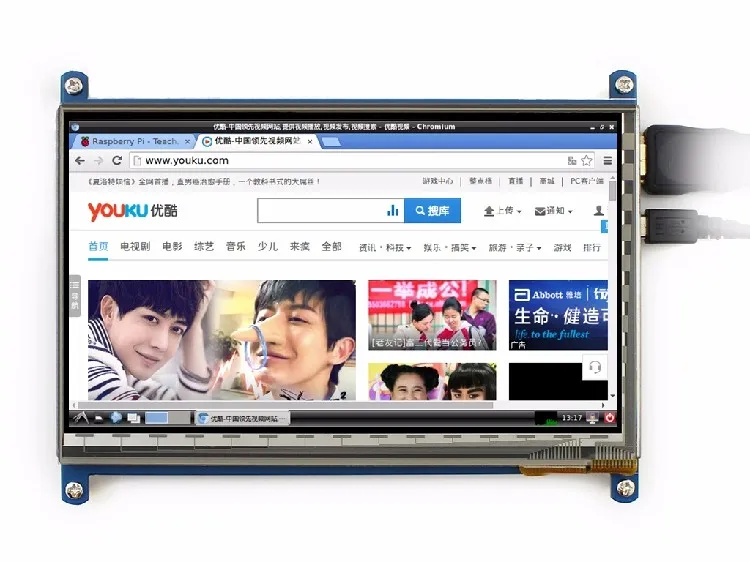

I am 800 x480 HD resolution with capacitive 7 inches touch screen specially designed for raspberry pi .But not only for raspberry pi.As you can say that i am a common HDMI display,you can use me with other mini PC to as a computer display.



Basic summary

·800*480 HD resolution

·capacitive touch

·Support backlight control

·Support raspberry pi provide driver under Raspbian system

·Support Ubuntu mirror image

·Support Banana pi,Banana Pro,provide Lubuntu,Raspbian  mirror image

·Support BB Black,provide Angstrom  mirror image

·Common use HDMI display



FAQ

  • Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our provided image directly.

  • Why the LCD still doesn't work with the Waveshare provided image?

Make sure the hardware connection is correct and connects fine.

Make sure the image in TF card is burnt correctly.

The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

  • Which power supply should I use?

It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might doesn't have enough power to support the Pi and LCD.

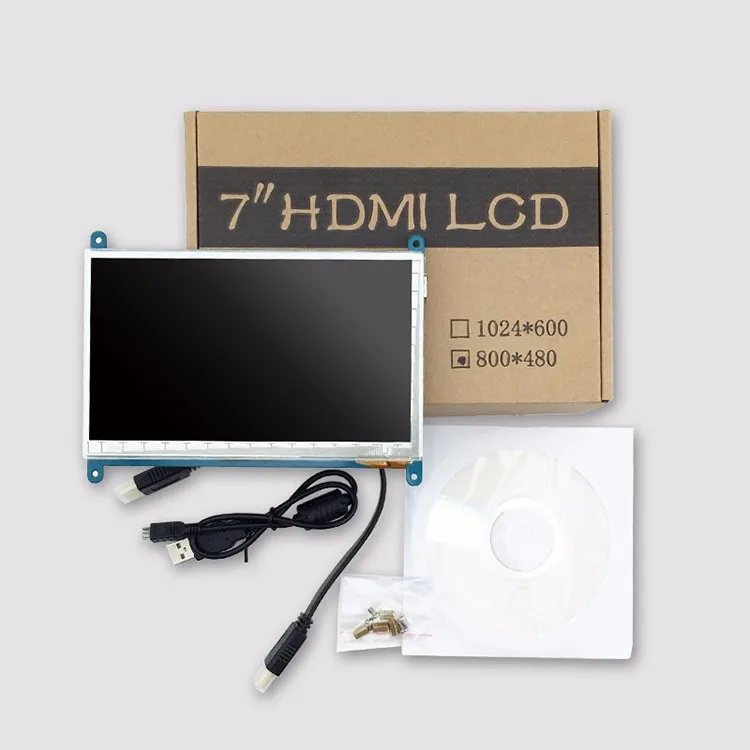

Packing

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.150kg (0.33lb.)
  • Package Size: 23cm x 19cm x 5cm (9.06in x 7.48in x 1.97in)
